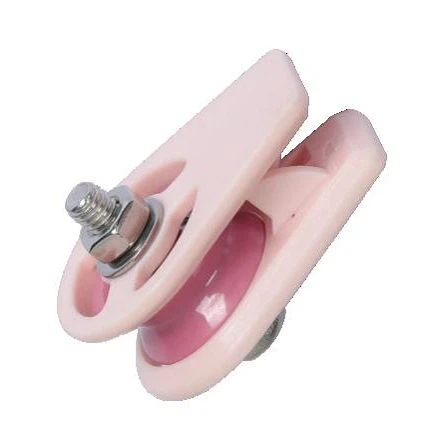

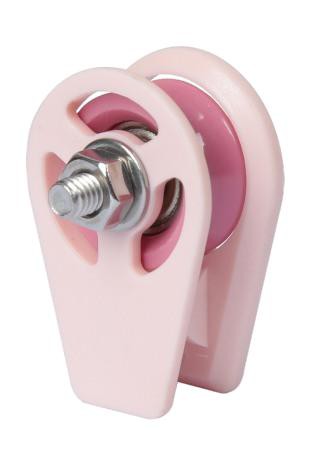

Wire guide prevente wire jump preventer NT series

a. High-speed bearings

b. Ultra-precision polishing

c. Available in a variety of sizes

d. Versatile applications, suitable for both the winding and textile industries

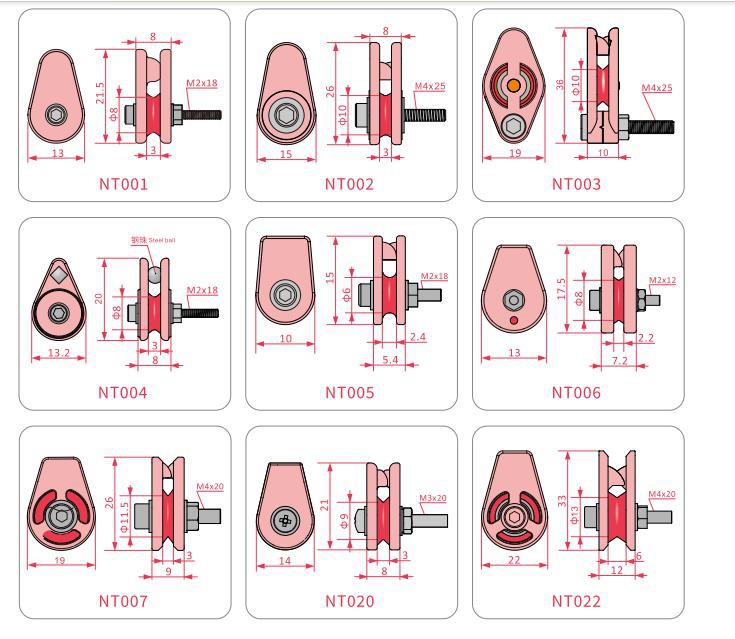

Product parameters

product-735-639

Product features and applications

Cage pulley, also known as non-torque pulley, is used in instances where there are radical changes in directions and prevents wirejumping during winding process. These Ceramic Cage Pulleys aremade of fine ceramic ,with their surfaces polished to ultra-fineRa0.2 finish. There is a high-speed precision bearing within the ceramic roller which keeps the sliding distance between the enamelled wire and the roller below 0.2 mm, so as to protect the coating of the wire and to maintain the stability of the wire tension.

Product Details

product-470-482

Super polished, beautiful shape, smooth threading

FAQ

Q: What should be noted during the installation of an anti-galloping device?

A: ●Selection of Installation Location: Anti-galloping devices should be installed in areas with high stress or where conductor movement is more likely, such as at crossing points, corners, or long spans.
●Tightening and Alignment: Ensure the device is securely fastened and properly aligned with the conductor to avoid loss of functionality due to loosening.
●Material Compatibility: Use materials with strong corrosion resistance and aging durability to maintain stable performance over time.

Hot Tags: wire jump preventer, China wire jump preventer manufacturers, suppliers, factory, ceramic eyelet wire guide, ceramic wire leading supplies, ceramic wire threading functions, plastic pulley, Ceramic Eyelet for Coil Winding Machine, Ceramic guide roller
