Product Overview
A. Adjust damping by changing the voltage; tension in both sections can be switched via buttons, making operation simple and convenient.
B. It uses the standard Modbus RTU protocol to communicate with the customer's PLC, HMI, and MES systems.
C. Maximum stable tension output can reach 5,000 grams.
D. Equipped with a high-definition LED display that shows the scale value of the set tension.
Product Specifications Table
|
SERIES |
MODEL |
WIRE DIAM. (mm) |
MAX WIRE SPEED(m/s) |
TENSION RANGE(g) |
TENSION STAGE |
POWER(VDC) |
DISPALY |
COMMUNICATION |
|
MET-XE series |
MET-XE150 |
0.04-0.14 |
15 |
15-150 |
2 |
DC24V |
LED |
RS485 |
|
MET-XE300 |
0.06-0.21 |
15 |
30-300 |
2 |
DC24V |
LED |
RS485 |
|
|
MET-XE500 |
0.08-0.28 |
15 |
50-500 |
2 |
DC48V |
LED |
RS485 |
|
|
MET-XE1000 |
0.11-0.40 |
15 |
100-1000 |
2 |
DC48V |
LED |
RS485 |
|
|
MET-XE2000 |
0.15-0.65 |
15 |
200-2000 |
2 |
DC48V |
LED |
RS485 |
|
|
MET-XE5000 |
0.28-1.1 |
15 |
500-5000 |
2 |
DC48V |
LED |
RS485 |
Product Details
This tensioner sets the maximum damping force provided by the damper when powered to 100%, dividing this damping into 200 equal parts, each representing one scale unit. The higher the value displayed on the LED screen, the greater the output tension; conversely, the lower the value, the smaller the tension.
The tensioner control panel is shown in the figure:
Easy to install and simple to thread

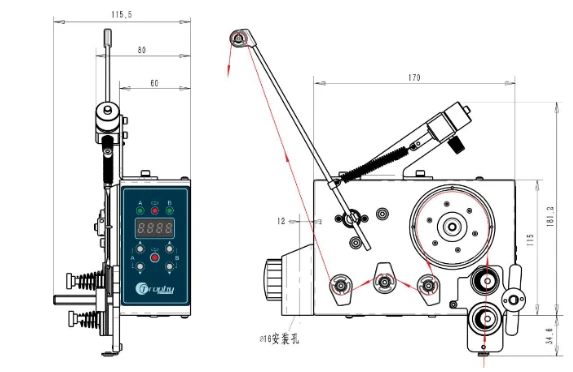

(MET-XE150/300 Installation and Wiring Structure Diagram)

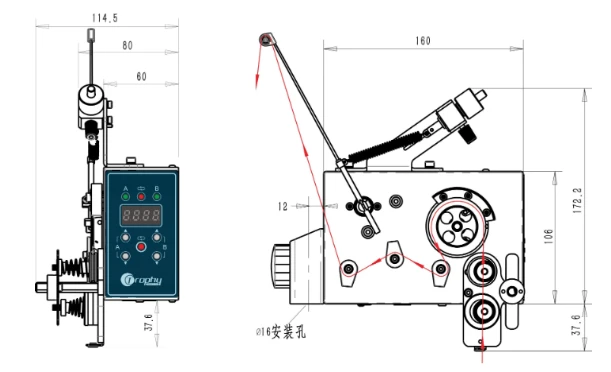

(MET-XE500/1000 Installation and Wiring Structure Diagram)

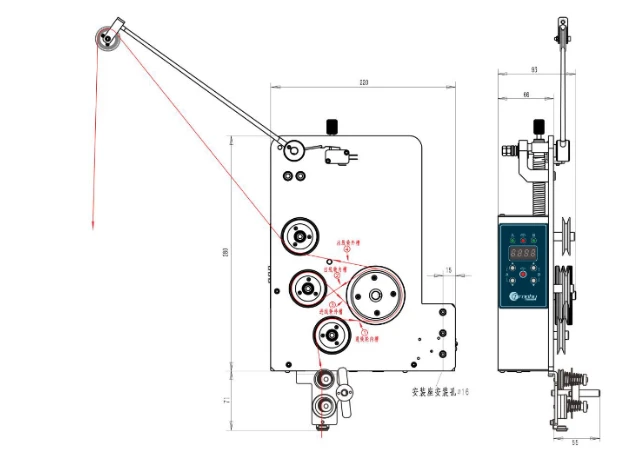

(MET-XE2000 Installation and Wiring Structure Diagram)

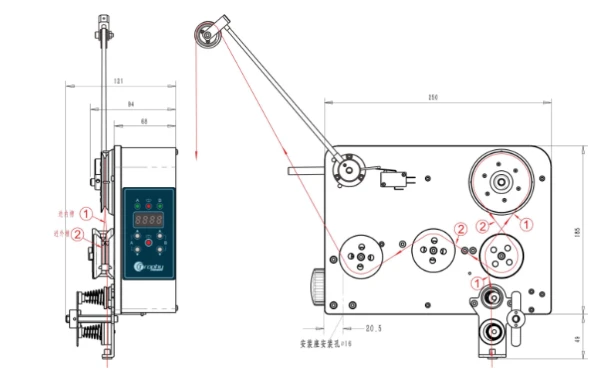

(MET-XE5000 Installation and Wiring Structure Diagram)
Tension adjustment
Adjust the counter-tension by moving the balance rod left or right. Moving the balance rod to the left increases the counter-tension, while moving it to the right decreases it. Once adjusted, tighten the screw securely.
Common Technical Issues and Solutions
A.How does an electronic tensioner work?
The electronic tensioner uses a hysteresis brake to generate damping when powered, and adjusts the output torque of the hysteresis brake by varying the current, thereby achieving stable tension control.
B.In what scenarios is an electronic tensioner suitable for application?
The electronic tensioner is primarily suitable for winding methods involving large amplitude movements of the tension rod, such as inner stator winding. It ranks second only to servo tensioners in flat winding applications. Among similar electronic tensioners, this model offers the best performance, stability, and sales volume, with tension control accuracy and stability far surpassing those of mechanical and magnetic tensioners, and only slightly inferior overall to servo tensioners.
C.What are the advantages of this electronic tensioner?
The equipment is simple to operate, with tension adjustable via up and down buttons. It also allows switching between first and second-stage tension using machine body buttons or IO signals, enabling convenient setup. For stator internal winding applications where the frame aspect ratio exceeds 1:5 and the tension rod experiences significant oscillation during winding, the MET-XE demonstrates superior voltage stability compared to servo systems and other types of tensioners, providing smoother tension control. As an upgraded version of the MET-HE, it significantly improves consistency in tension output when multiple units are synchronized and set to the same scale value, making it better suited for high-volume production lines on multi-axis winding machines.
Introduction to After-Sales Service
One-year warranty.
